Aircharge

In-Desk Wireless Surface Charger



FEATURES

  • Fits into 80mm hole in any surface
  • Can be retrofitted to standard 80mm desk grommets
  • Fits to a variety of desk thicknesses (18mm - 50mm)
  • Qi-Certified - supports all Qi compatible devices and Aircharge accessories
  • Safety protections - Foreign Object Detection, Overcharge protection, Temperature Sensor Control
  • Can be secured to underside of work surface using steel plate and screws provided
  • USB power cable allows multiple units to be connected to a hub (supplied separately)
  • QR Web App launch available
  • Co-branding and bespoke full bleed colour & image printing available
  • Data connectivity supported

TECHNICAL SPECIFICATIONS

  • Finish/colour: Various (see below)
  • Input: DC 5V, 1500mA (plug must be this specification)
  • Power cable: 2m USB
  • Frequency: 100-200kHz
  • Certification: Qi certified

FINISHES

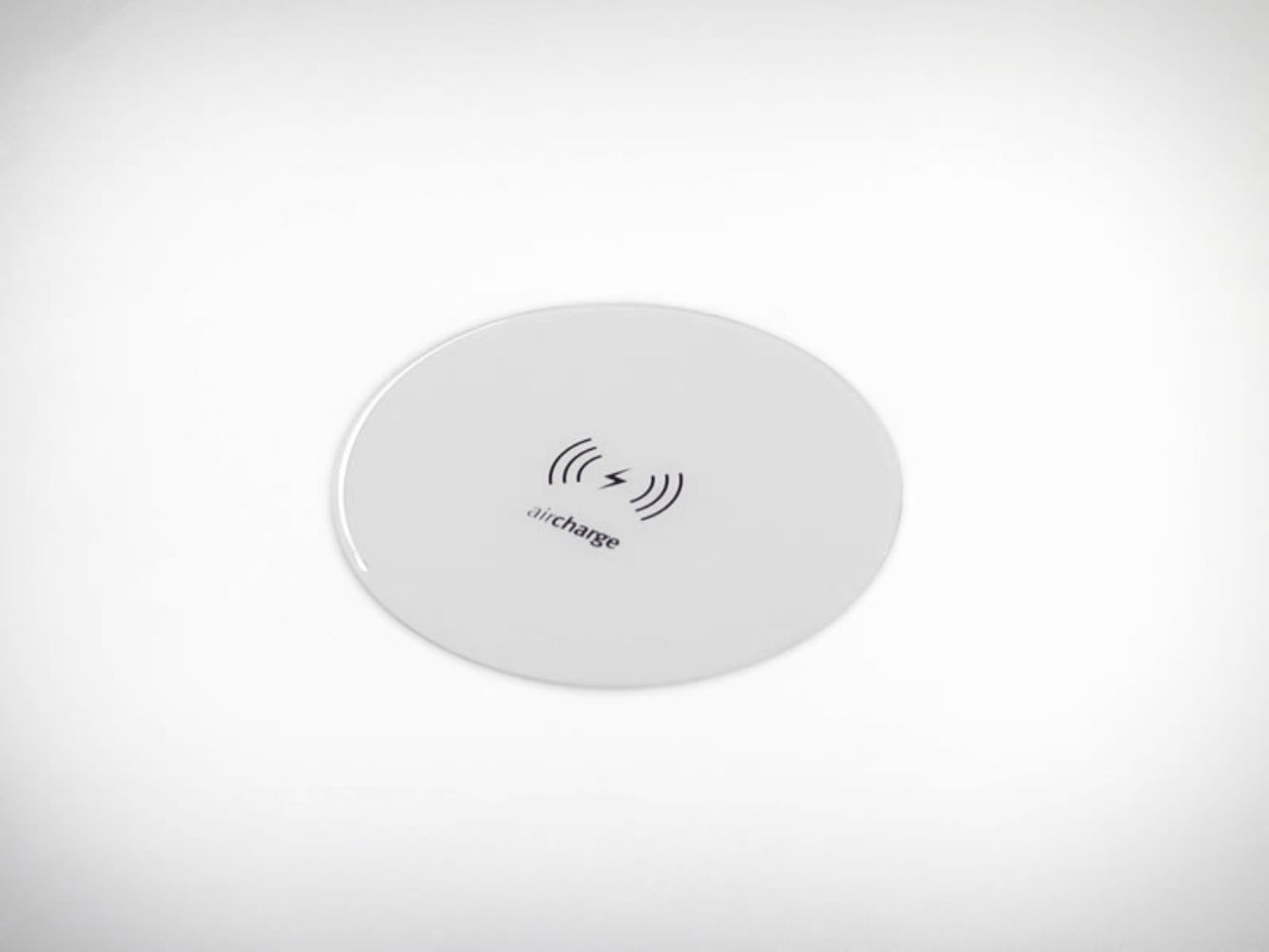

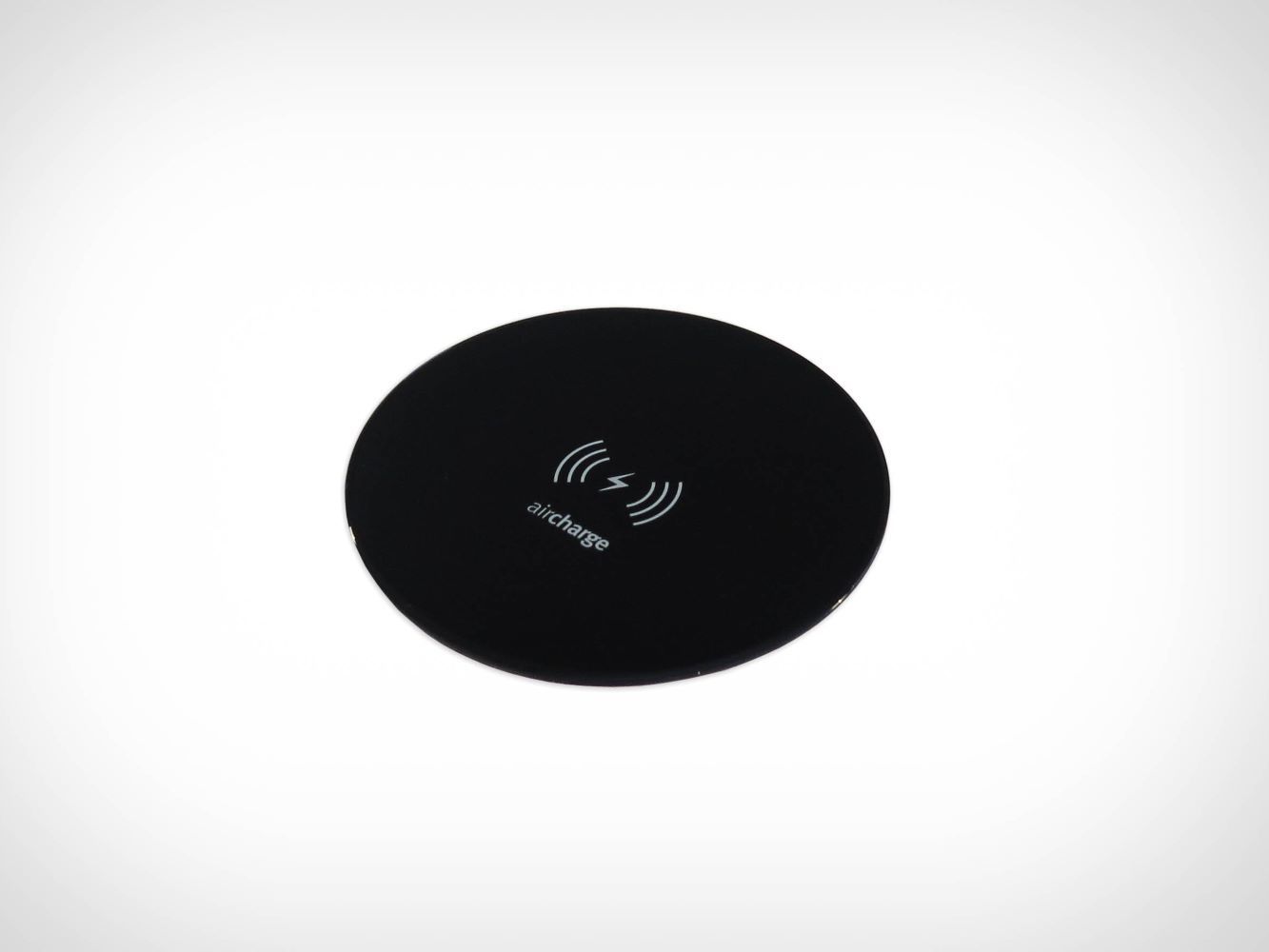

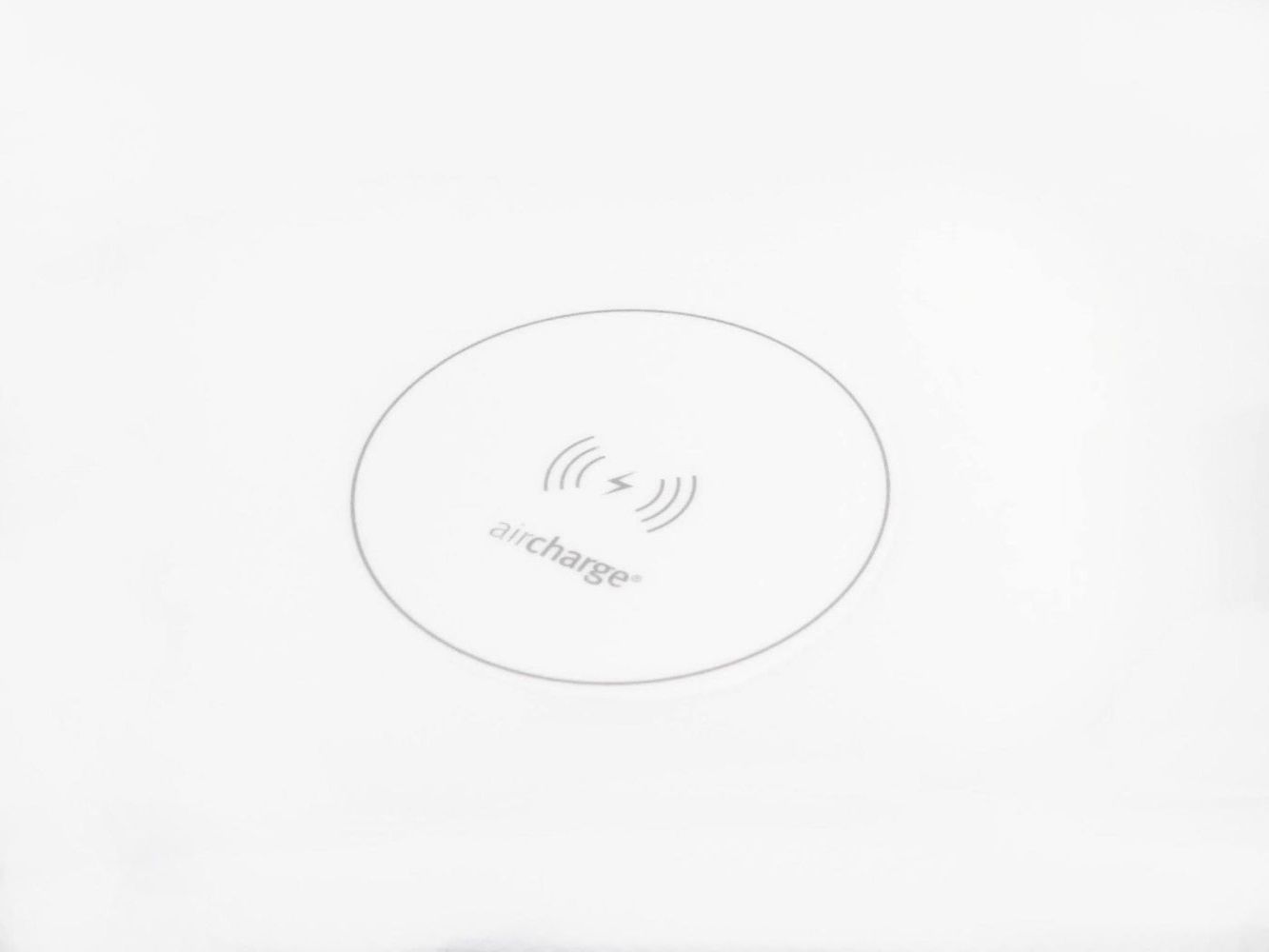

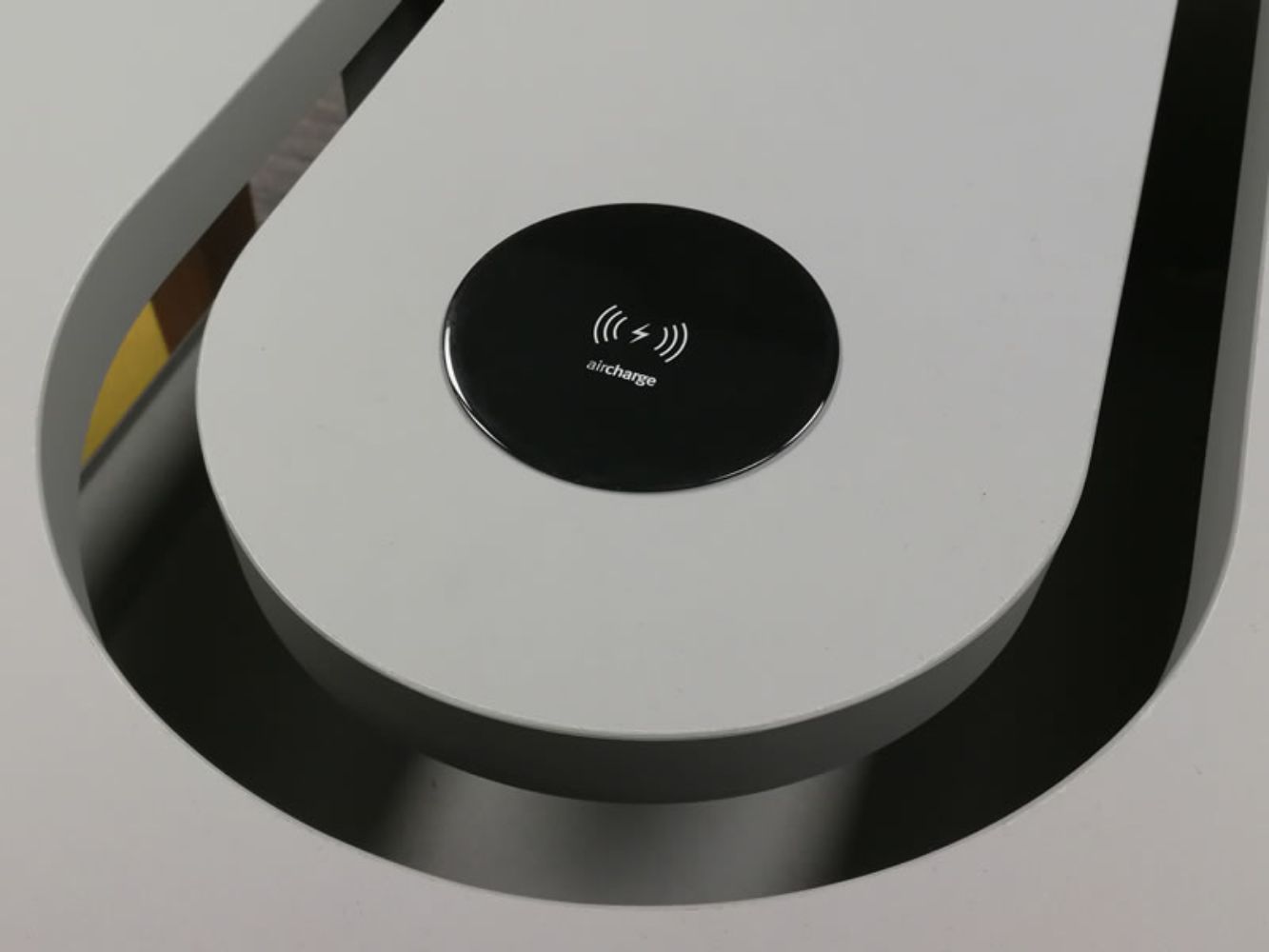

1) Gorilla Glass

Made of durable tempered Gorilla Glass, this Wireless Surface Charger provides a seamless surface integration into any desk or tabletop for a premium finish and enhanced experience. Black or white finish.

Available with:

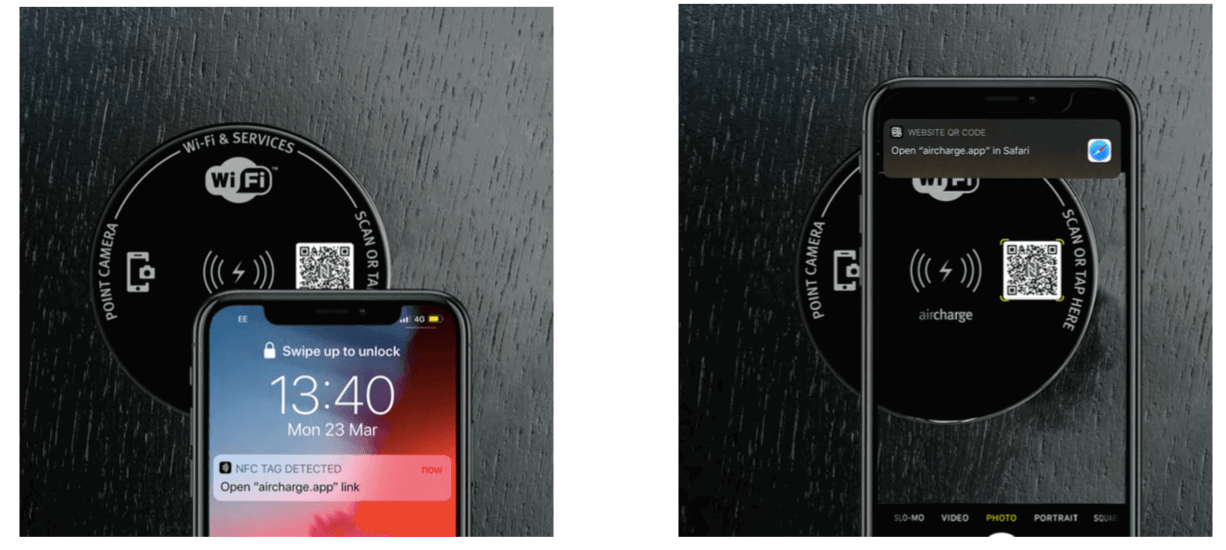

  • QR Web App launch for mobile services & marketing initiatives
  • Co-branding and bespoke full bleed colour & image printing
  • Data connectivity for system monitoring, analytics & over-the-air updates

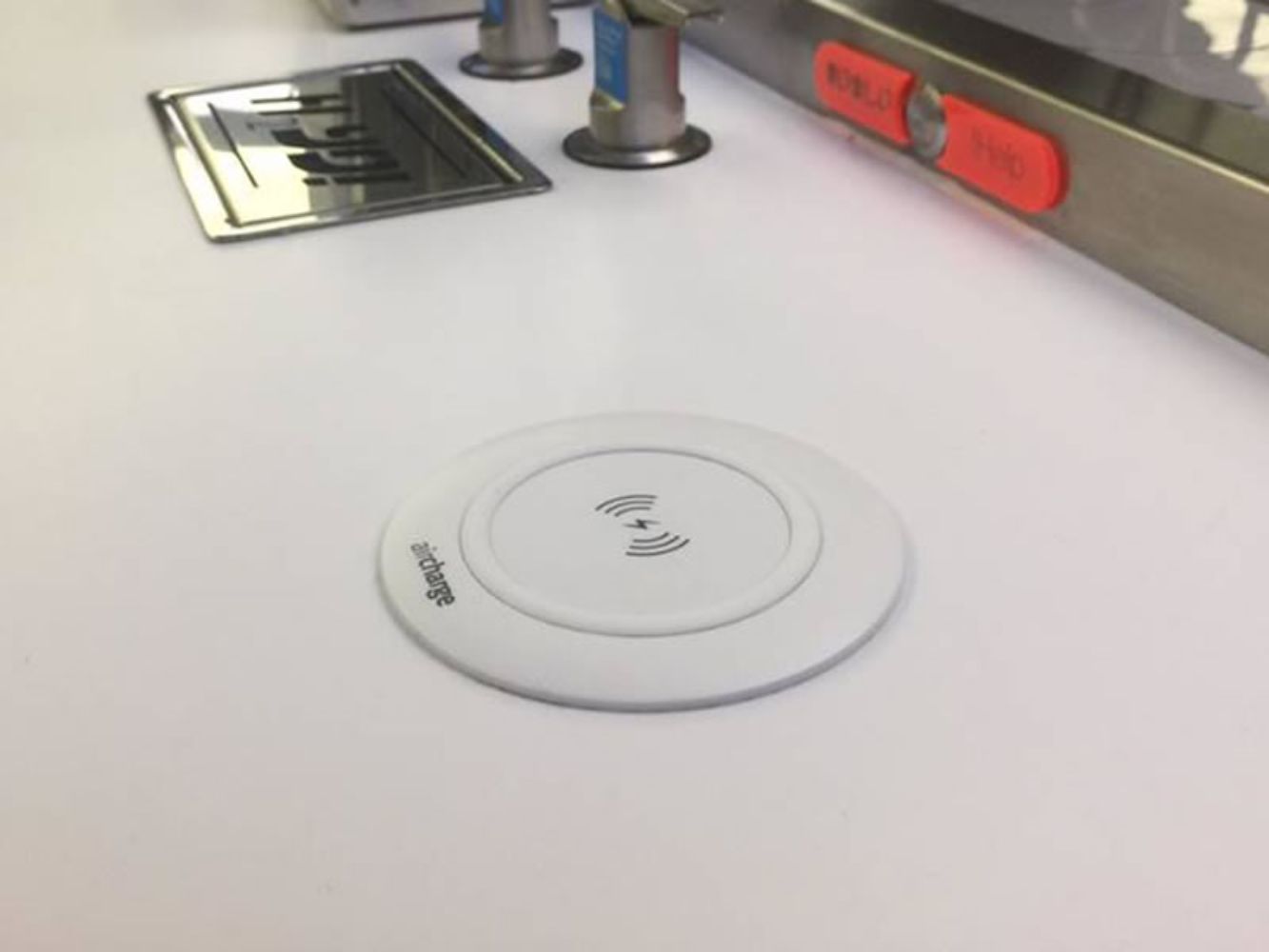

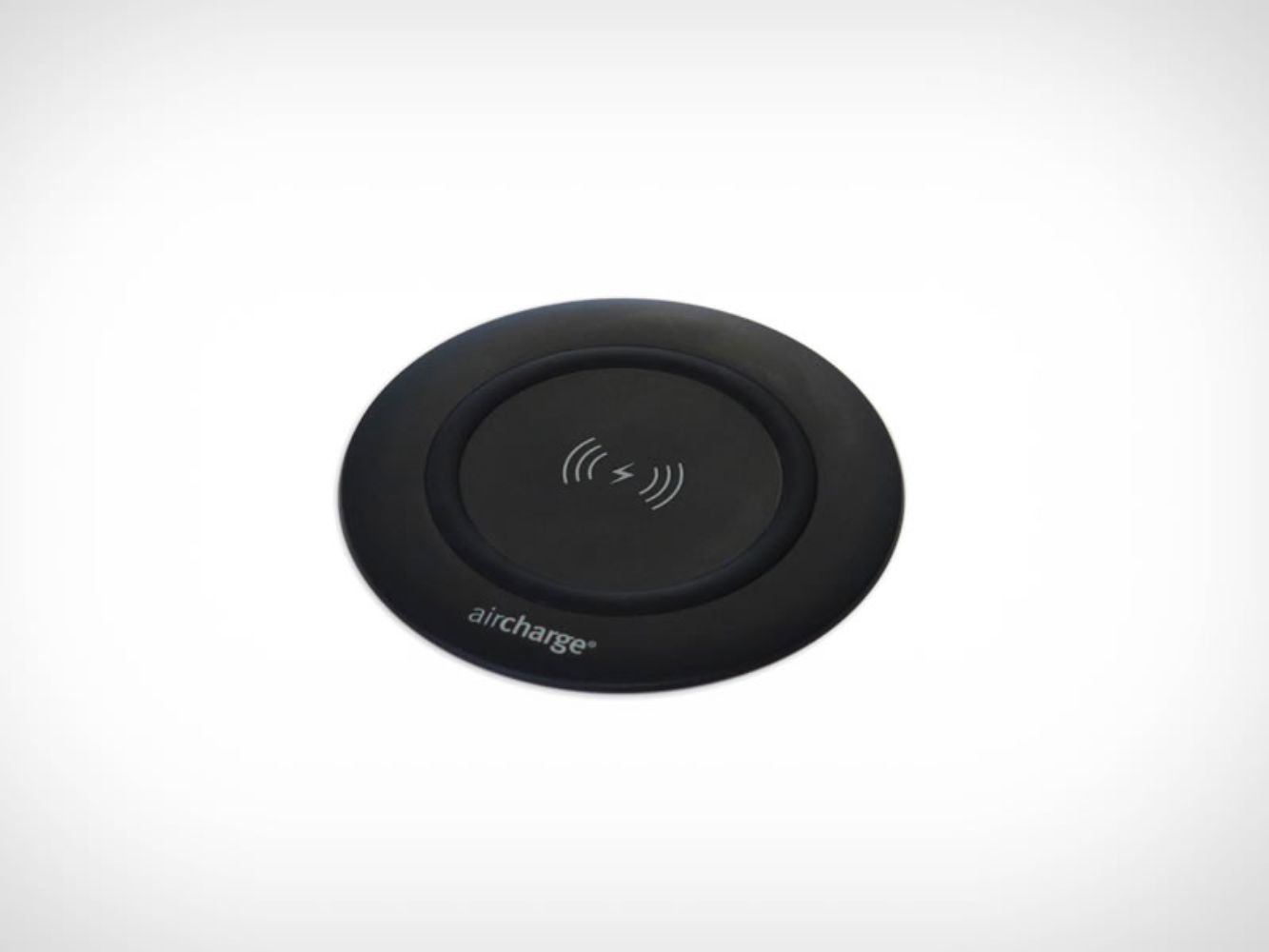

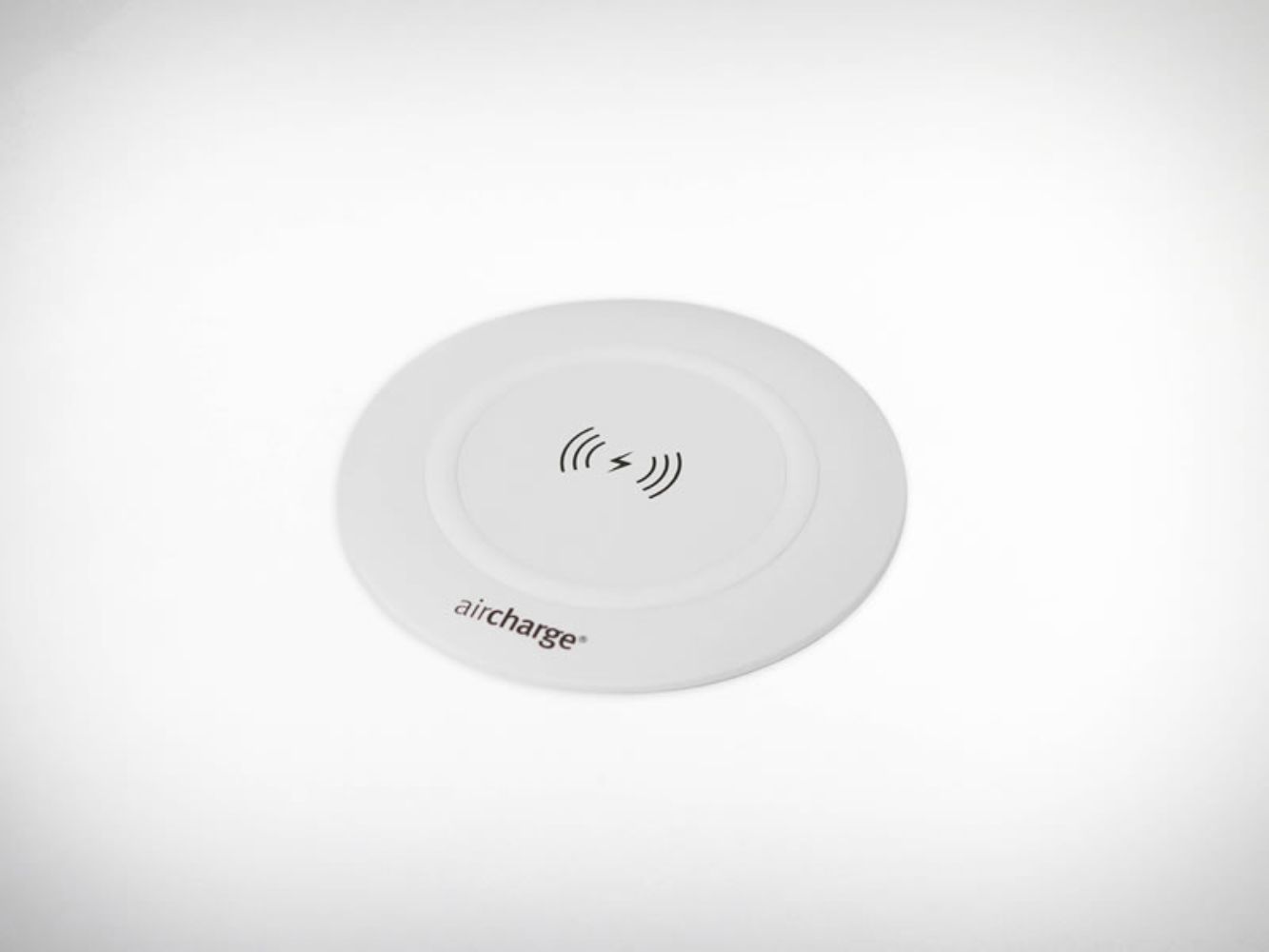

2) Nylon

The Aircharge Nylon Surface Charger set the standard for infrastructure-grade wireless charging solutions. With a durable water and dust proof outer casing, this wireless charger can be installed in any desk, table or counter to provide wireless power in public venues 24/7. Available with data connectivity for system monitoring, analytics & over-the-air updates.

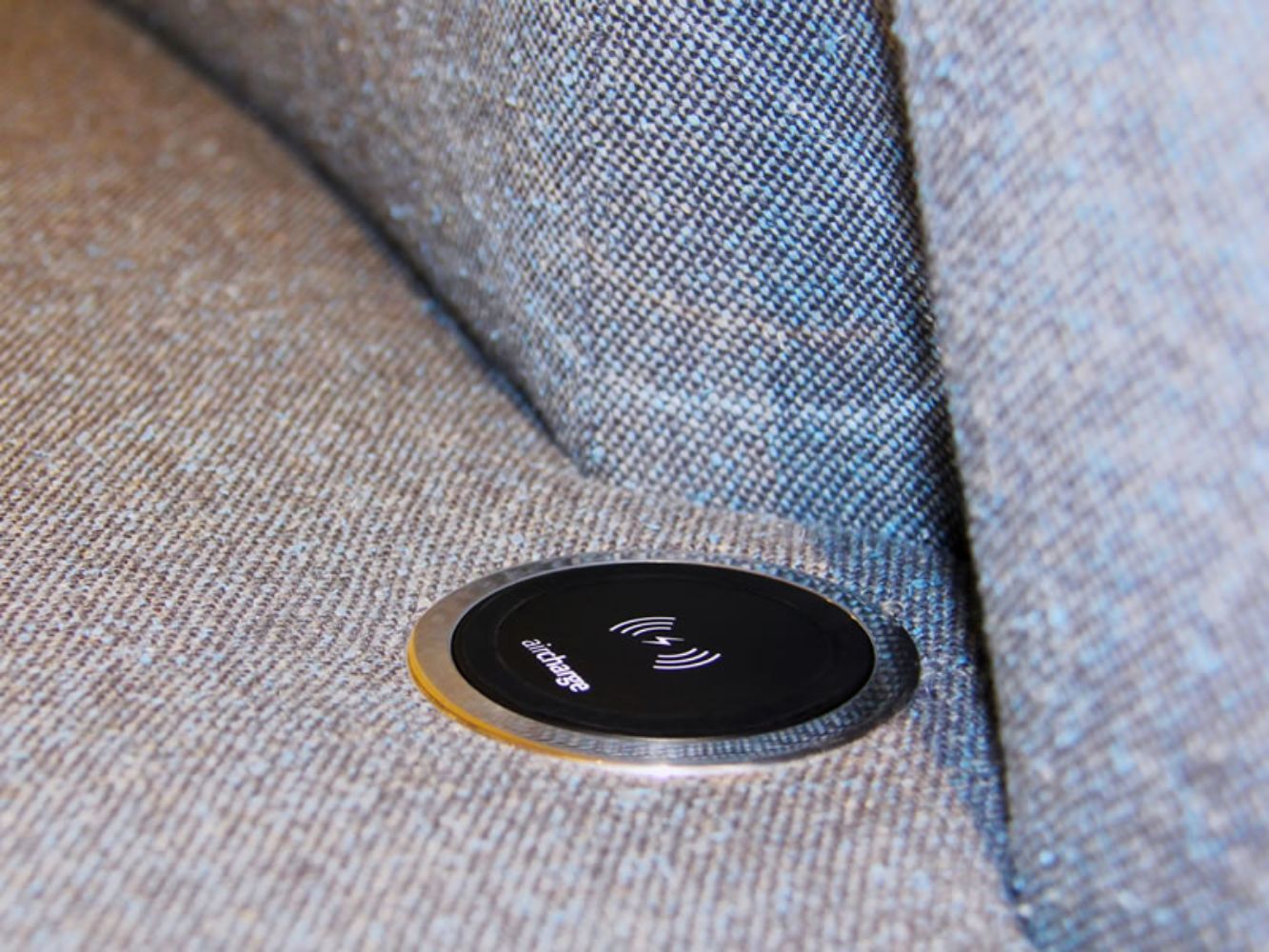

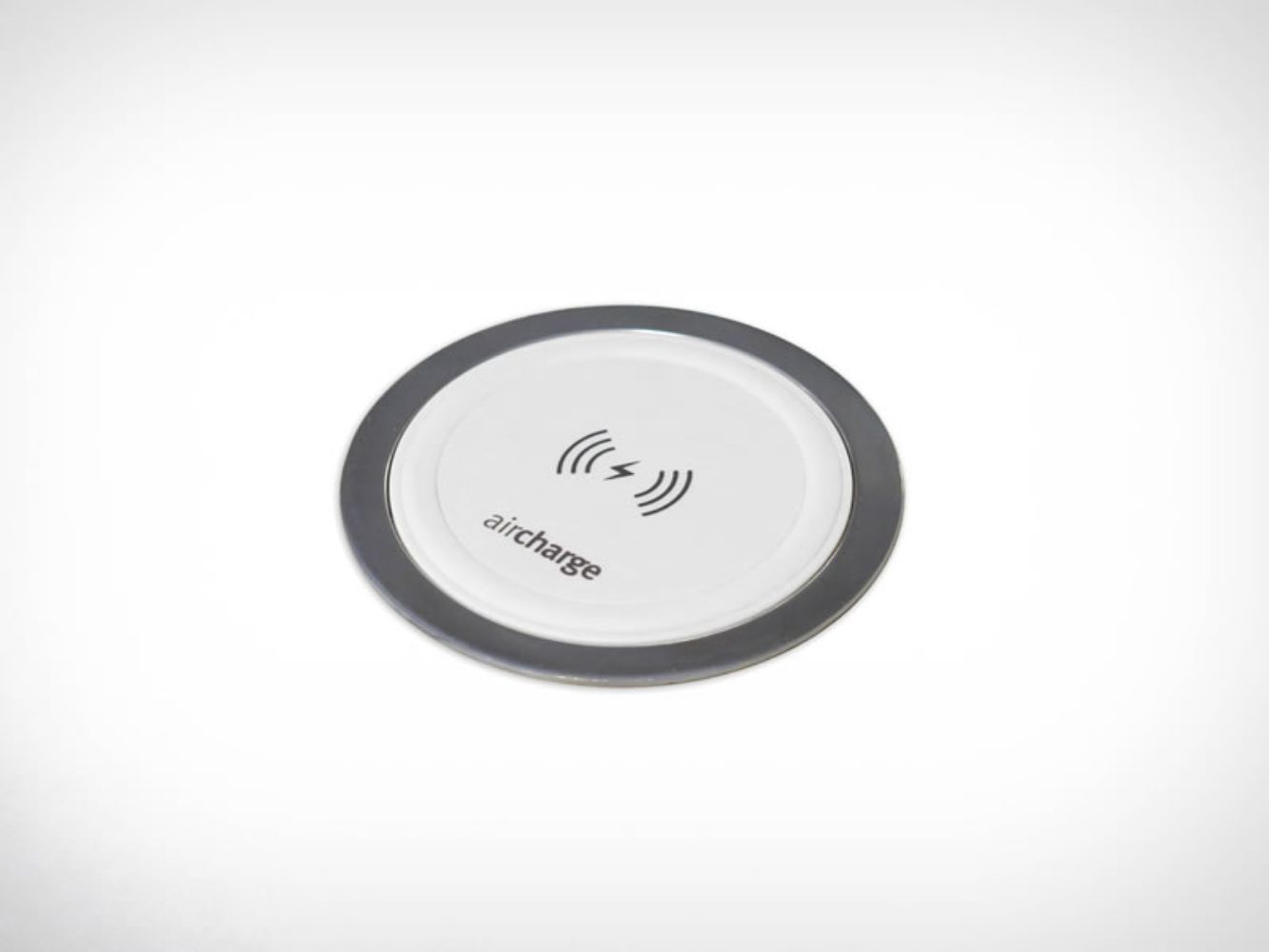

3) Aluminium

The Aircharge Aluminium surface charger is the perfect solution to provide wireless power to any desk, table or even soft seating product for the home or the office, without having to sacrifice on aesthetics.

Black or white nylon finish.

Available with data connectivity for system monitoring, analytics & over-the-air updates.

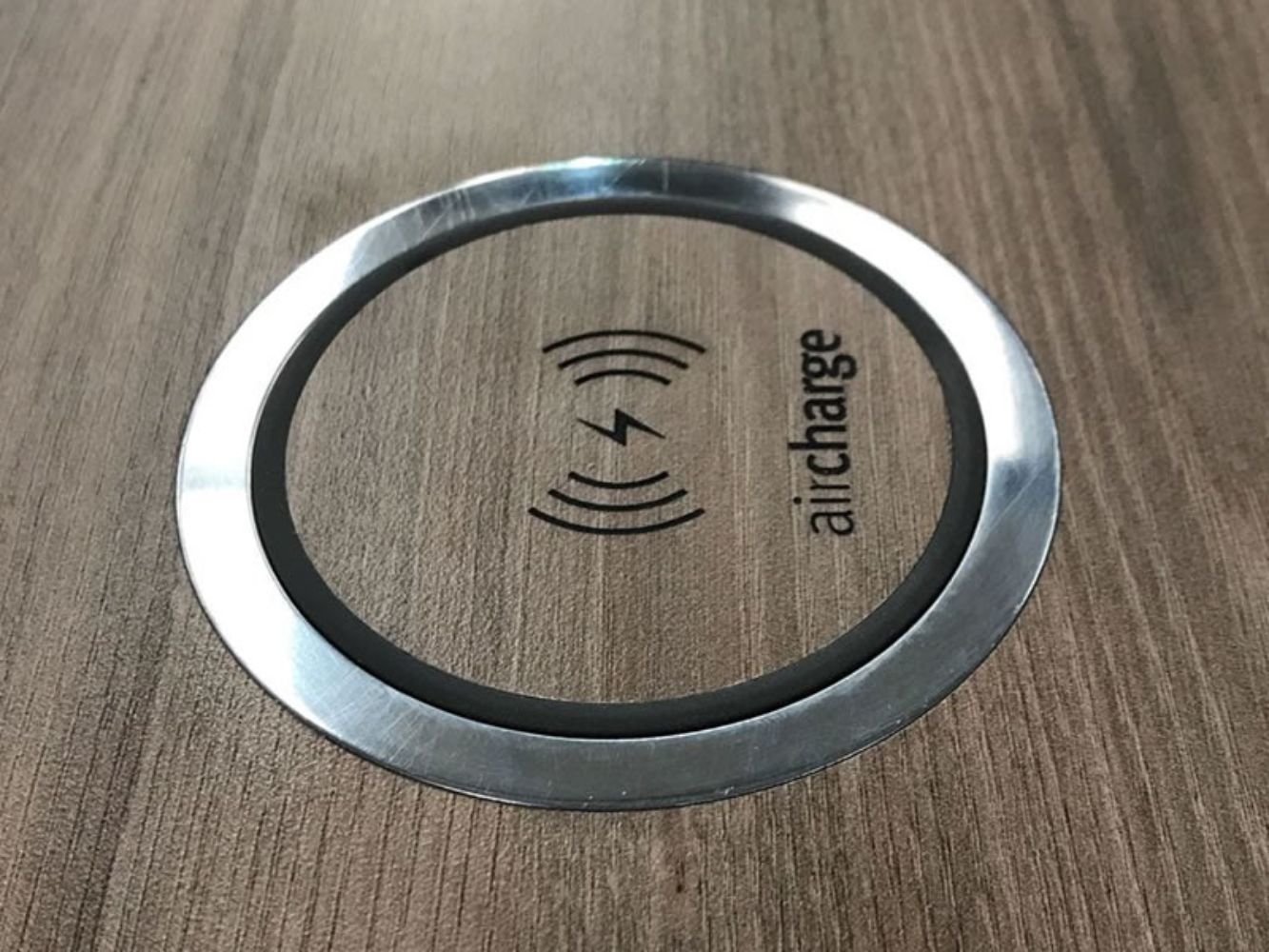

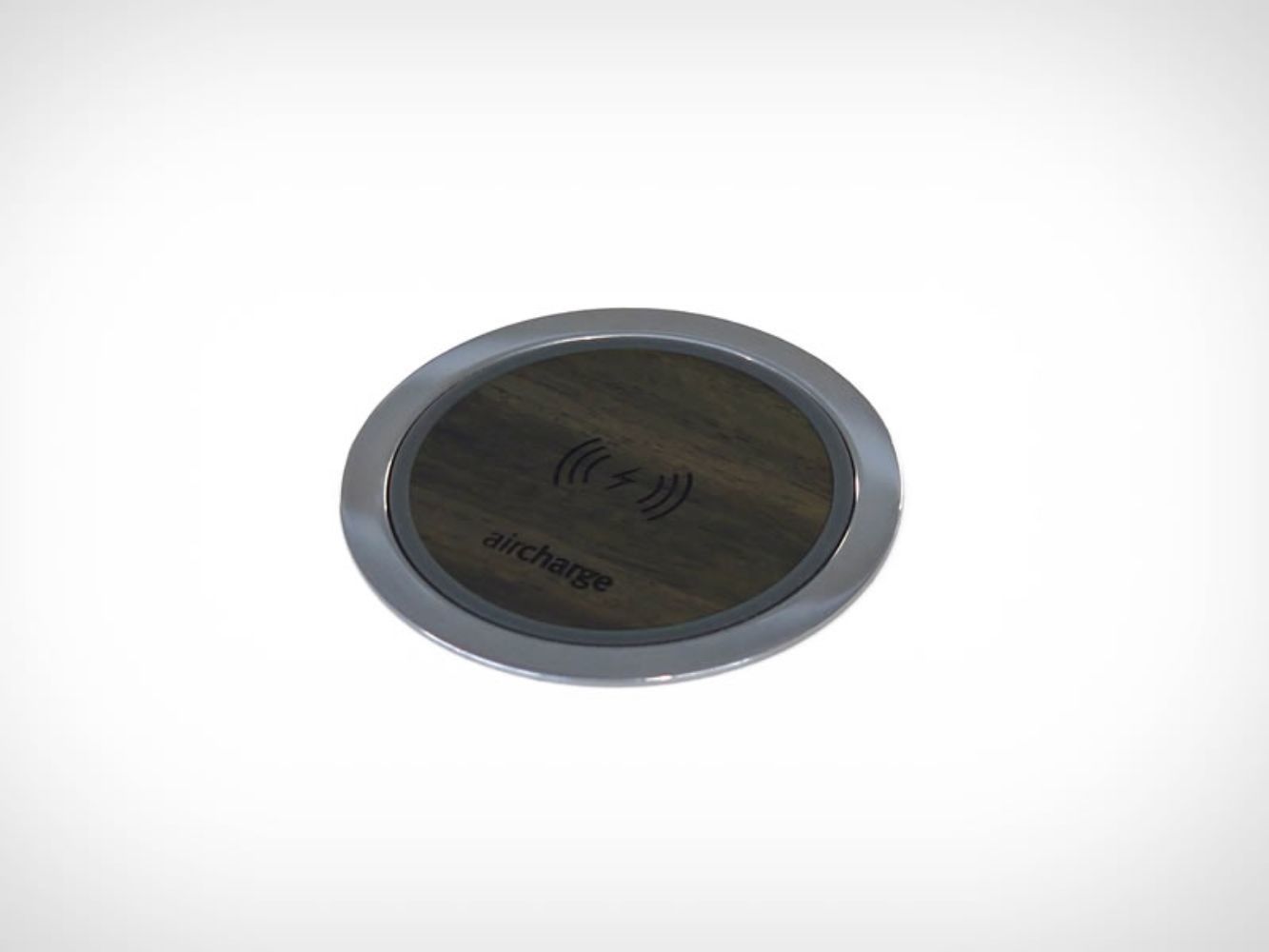

4) Veneer

The Veneer Wireless Surface Charger provides the ultimate level of customisation for any table or desk. With a bespoke veneer finish to match the same material and colour of the table top, this wireless charger will seamlessly blend in with the furniture creating an ‘almost invisible’ effect.

Design allows for co-branding.

Available with data connectivity for system monitoring, analytics & over-the-air updates.

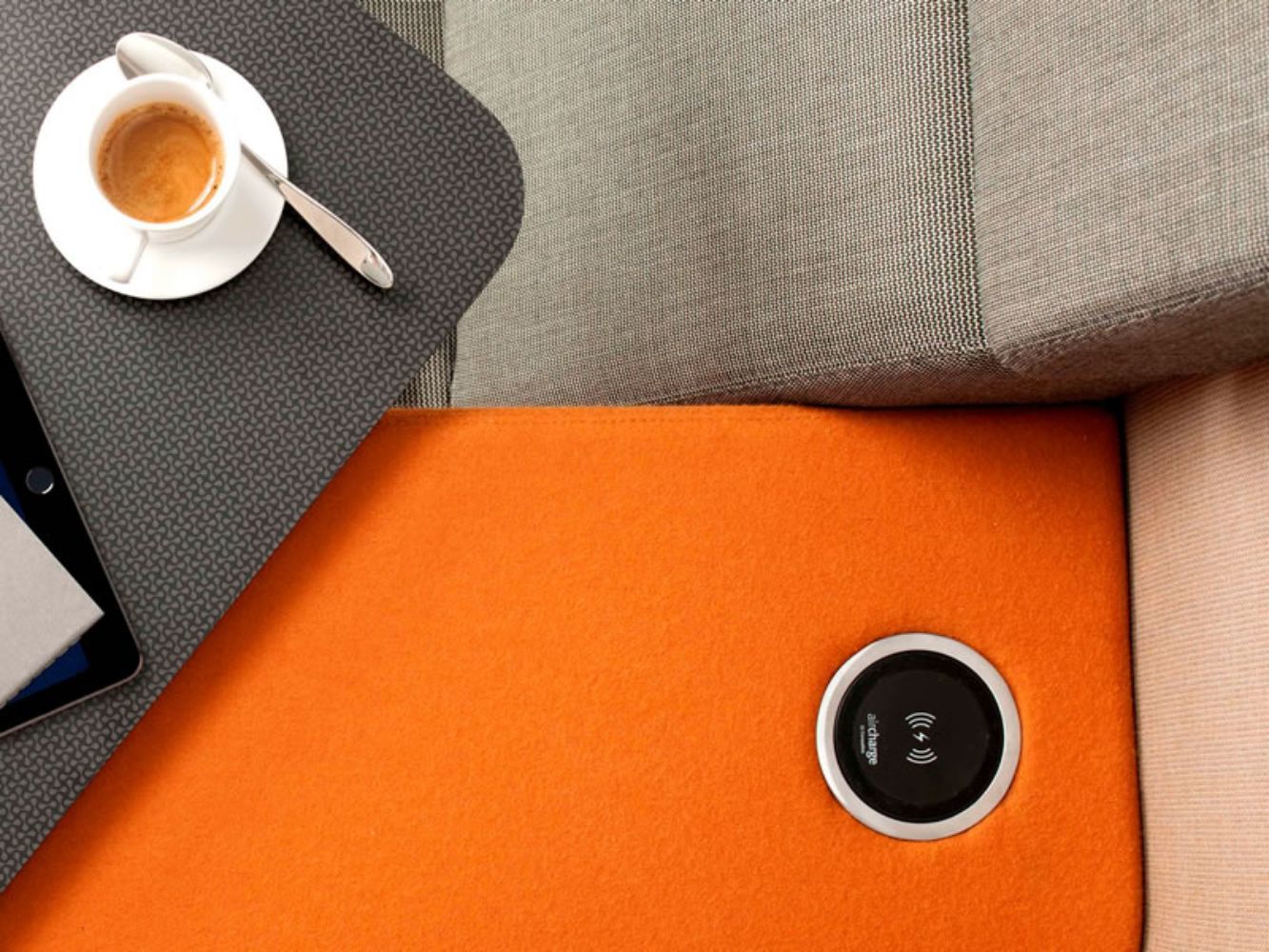

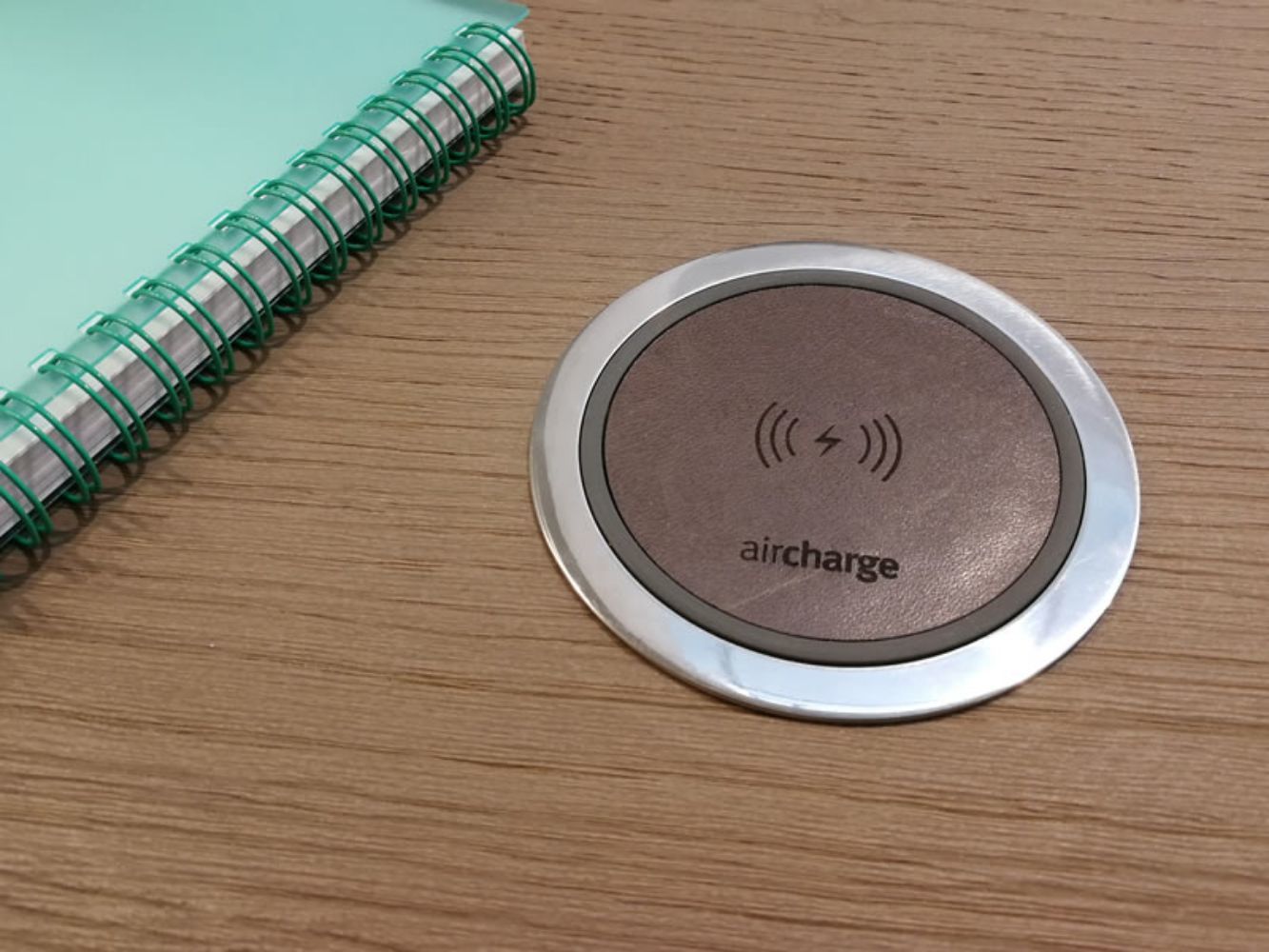

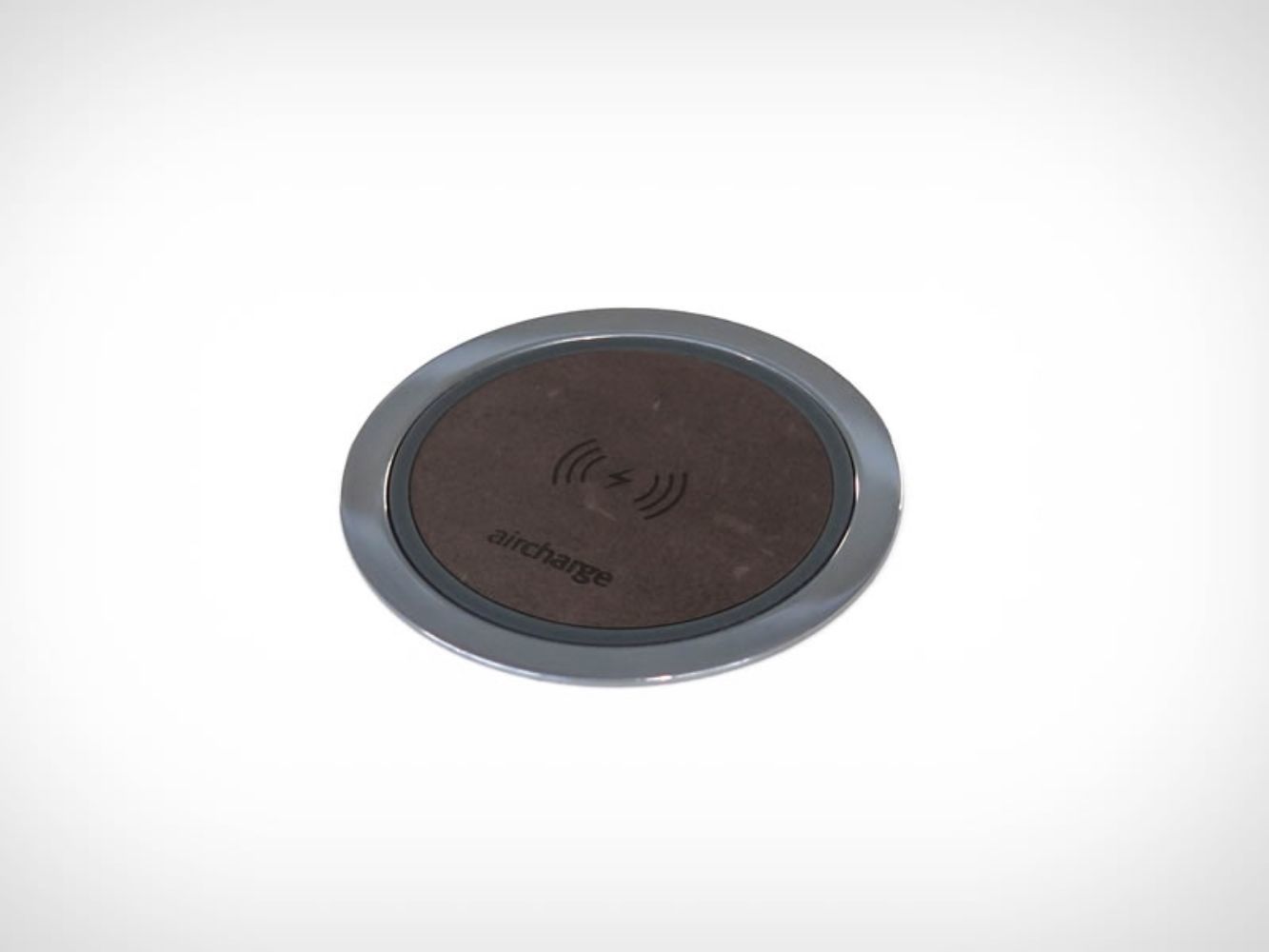

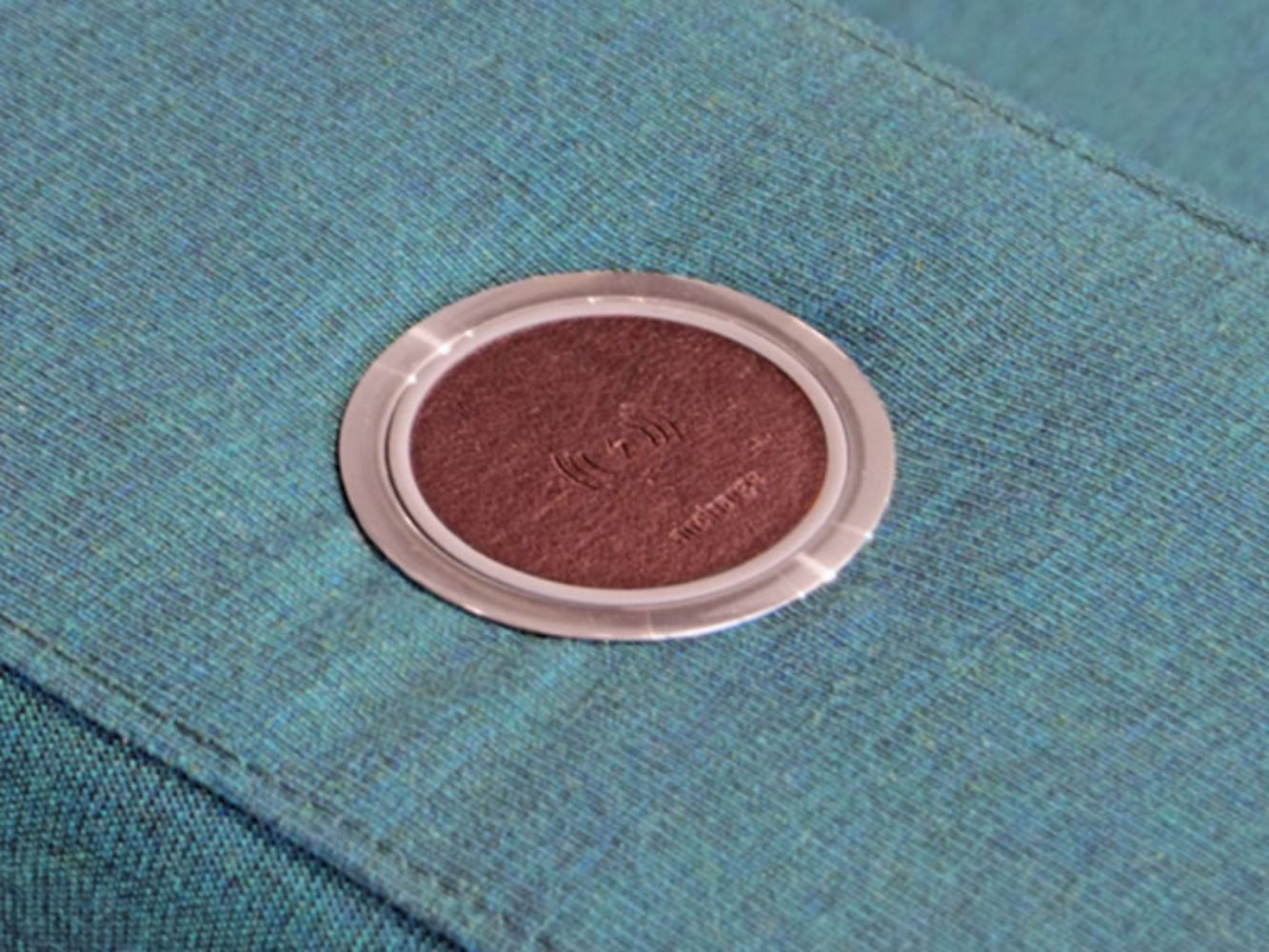

5) Leather

Wireless charging technology meets design. The Leather Wireless Surface Charger provides the ultimate level of sophistication when it comes to wireless power at home or in the office. Choose from a selection of premium leather colours including black, light & dark brown, tan, yellow, lime, orange, red, purple, blue, aqua, and white.

Design allows for co-branding.

Available with data connectivity for system monitoring, analytics & over-the-air updates.

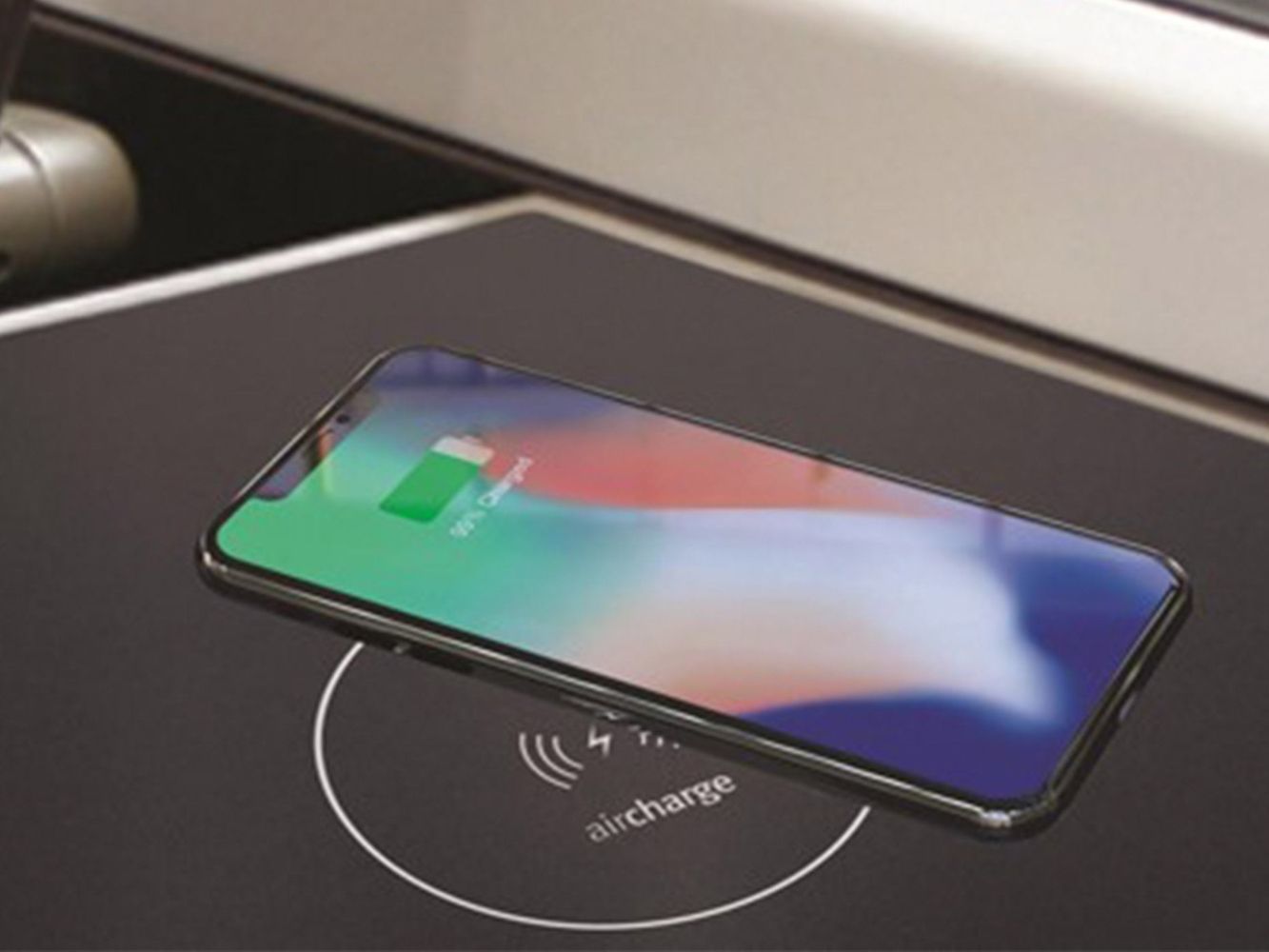

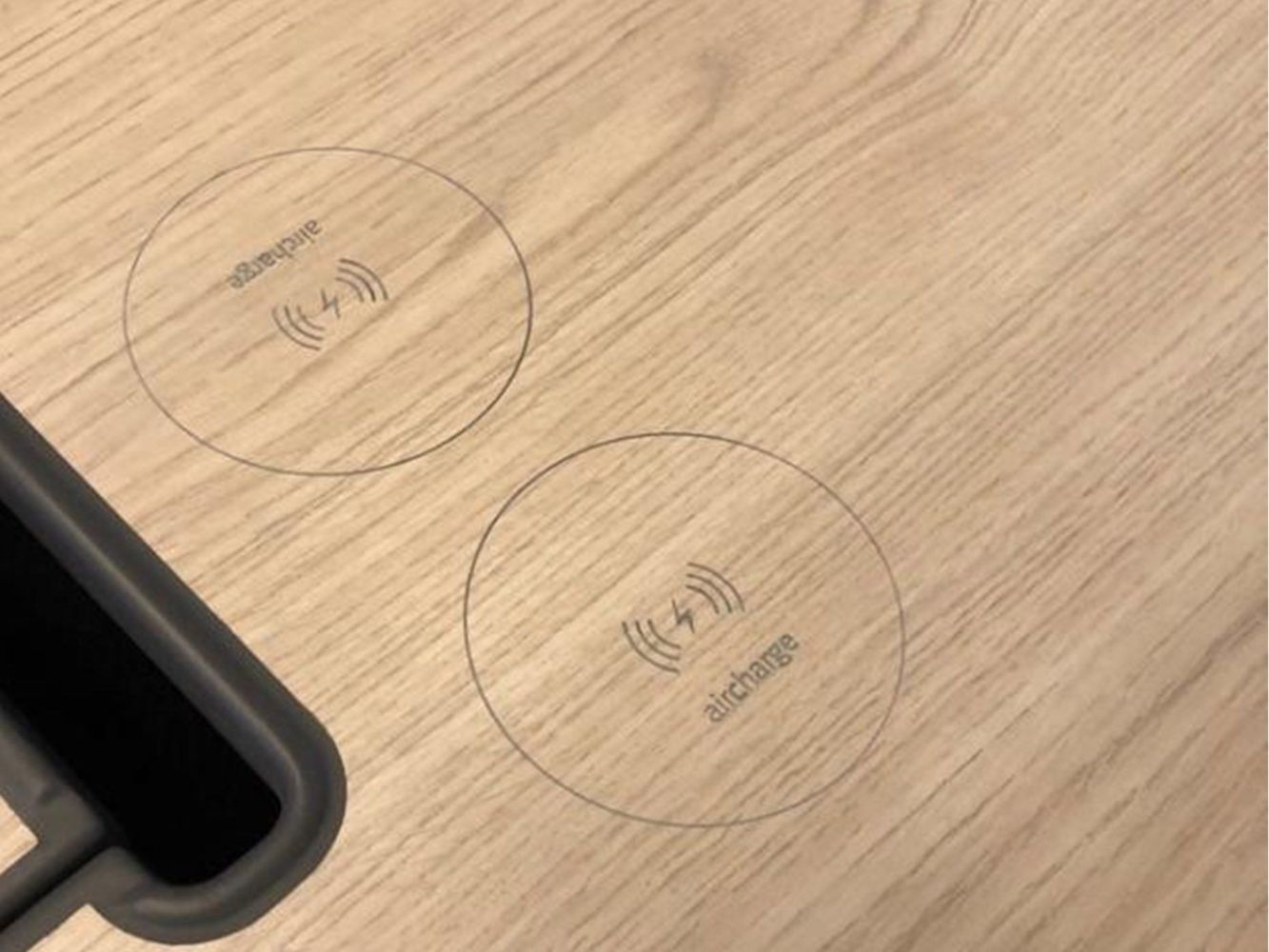

Aircharge

In-Desk Wireless Sub-Surface Charger

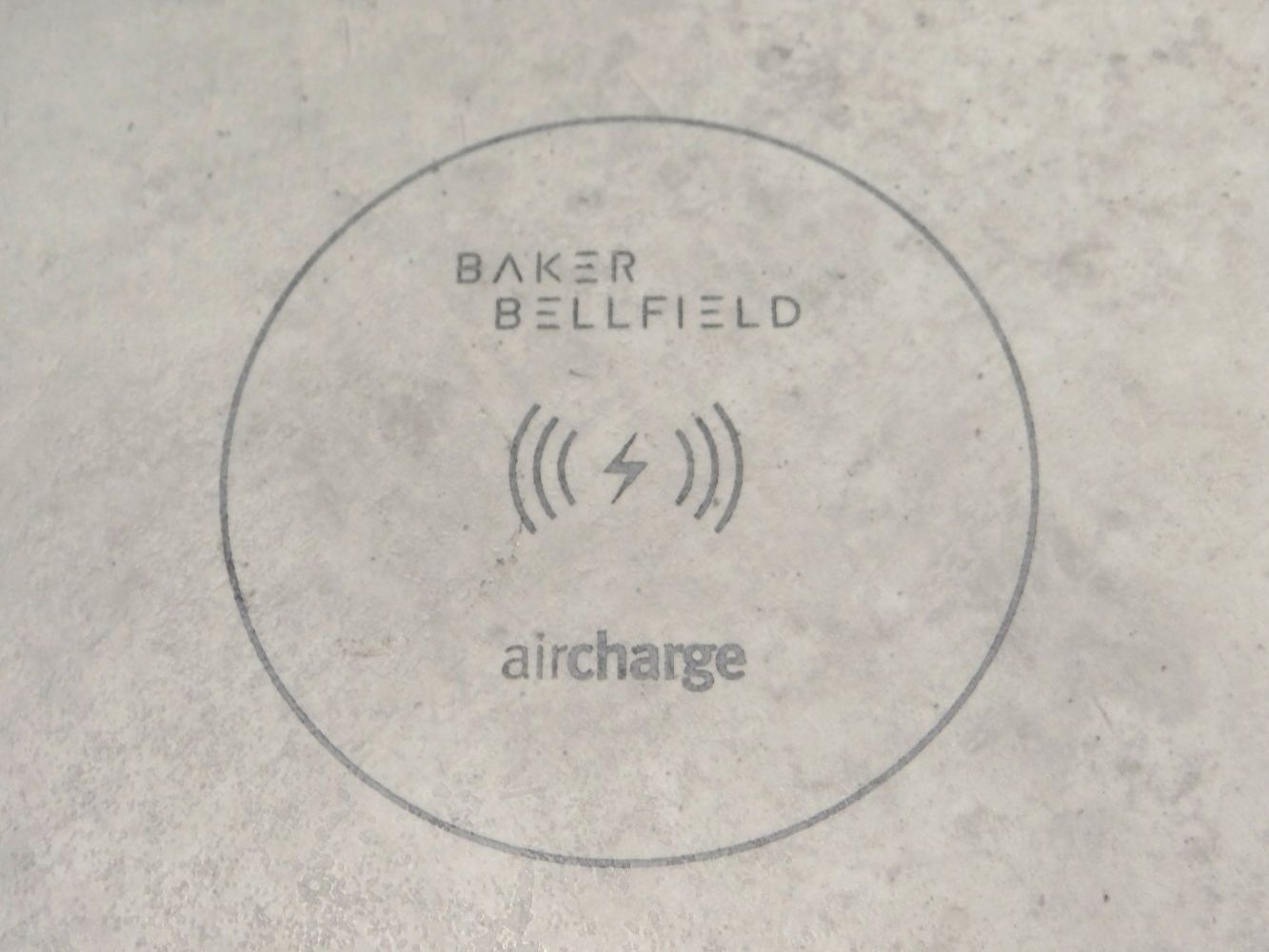

Installed from the underside of a desk or table, the Aircharge Wireless Sub-Surface Charger becomes an integral part of the furniture, maintaining the look & feel of the surface completely intact.

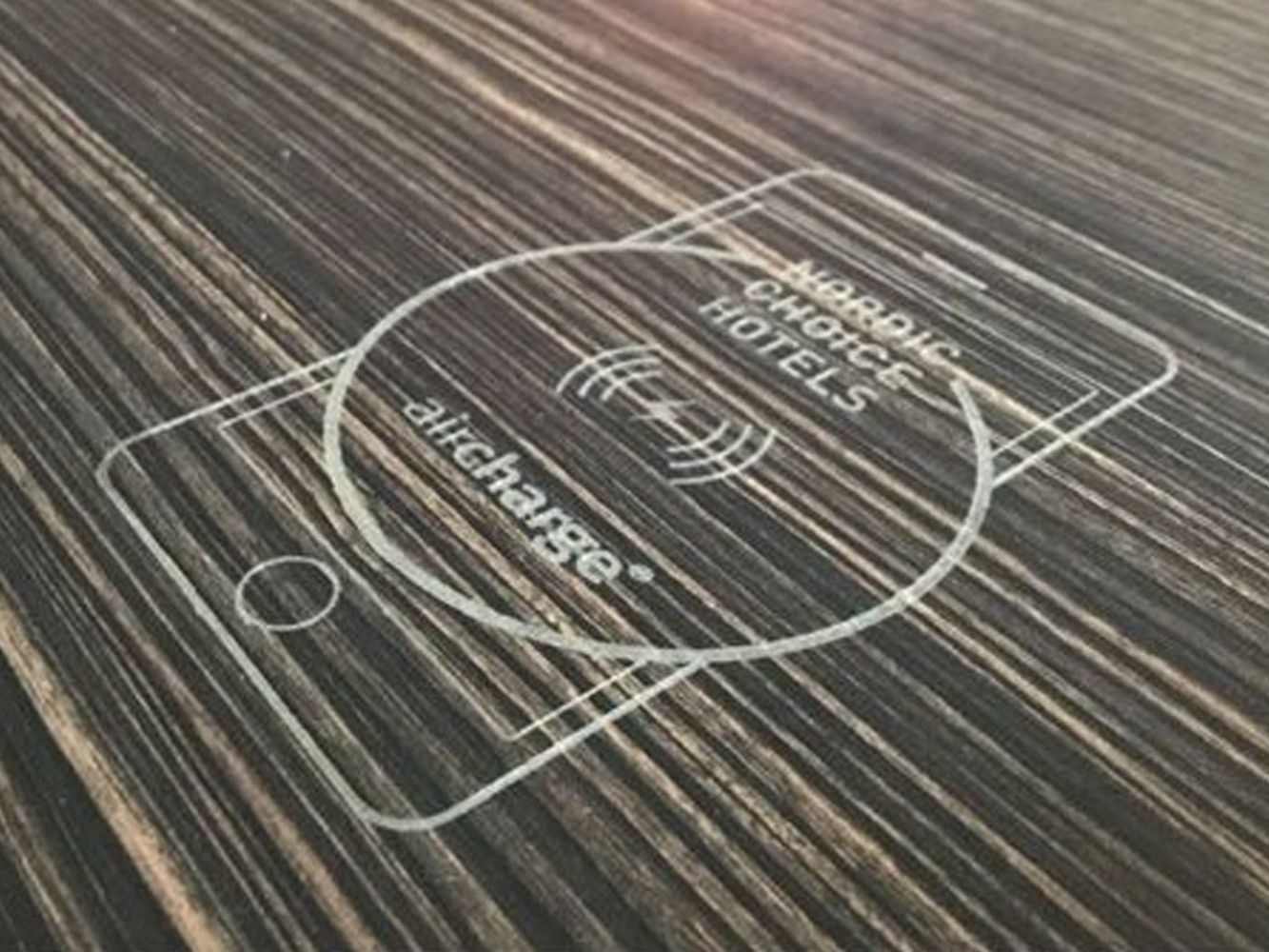

Logo etching guidelines for optimal device positioning must be followed.

Available with data connectivity for system monitoring, analytics & over-the-air updates.



FEATURES

  • Fits any desk thicknesses – a 80mm ⌀ housing will be drilled from the underside of the table leaving maximum 2mm for optimal efficiency
  • Qi-Certified - supports all Qi compatible devices and Aircharge accessories
  • Safety protections - Foreign Object Detection, Overcharge protection, Temperature Sensor Control
  • Can be secured to underside of work surface using steel plate and screws provided
  • USB power cable allows multiple units to be connected to a hub (supplied separately)
  • Data connectivity supported
  • Please note: As device cases vary in thicknesses we recommend a depth of 2mm, and a maximum depth of 3mm


TECHNICAL SPECIFICATIONS

  • Input: DC 5V, 1500mA (plug must be this specification)
  • Power cable: 2m USB
  • Frequency: 100-200kHz
  • Certification: Qi-Certified


Aircharge

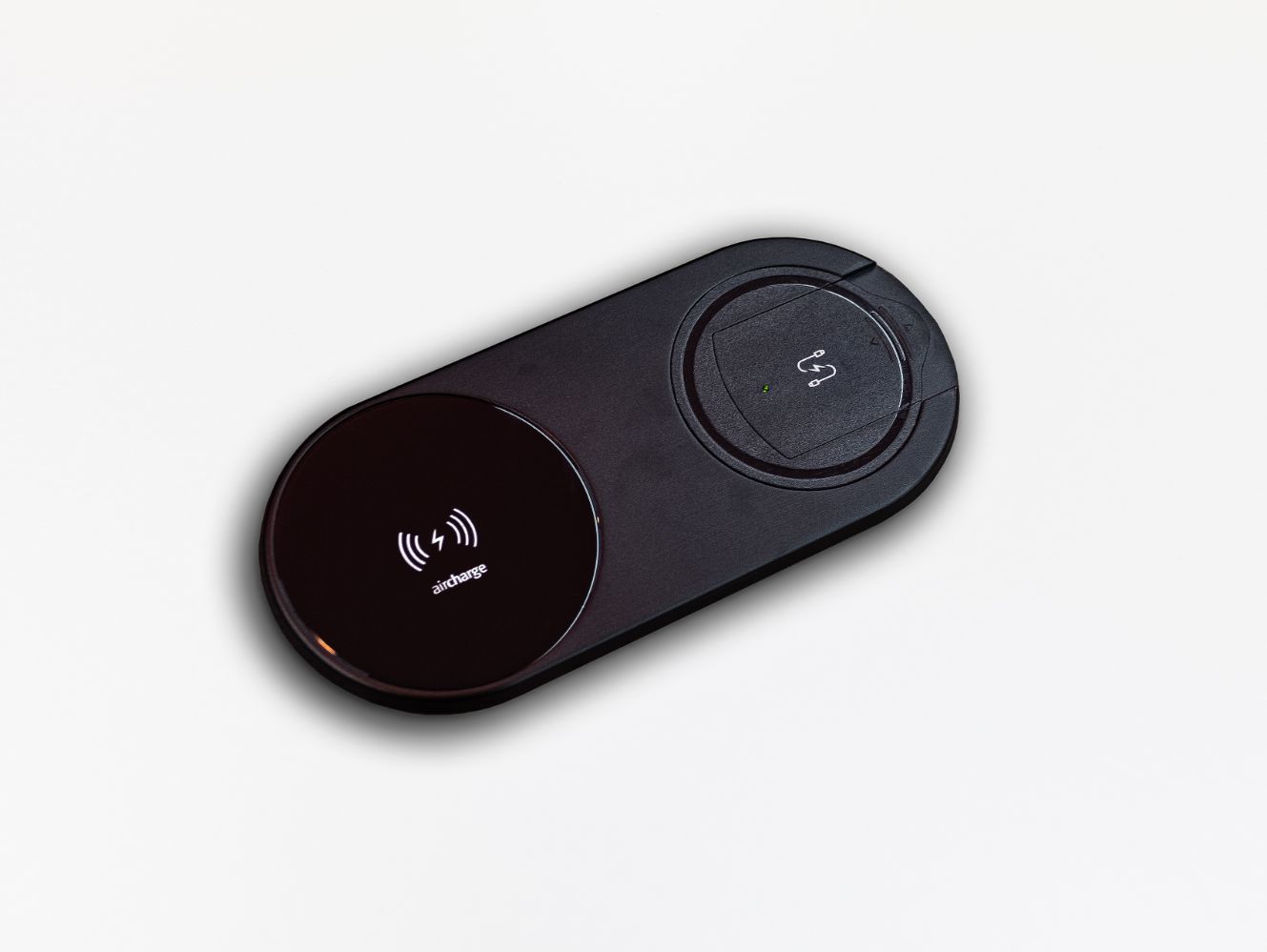

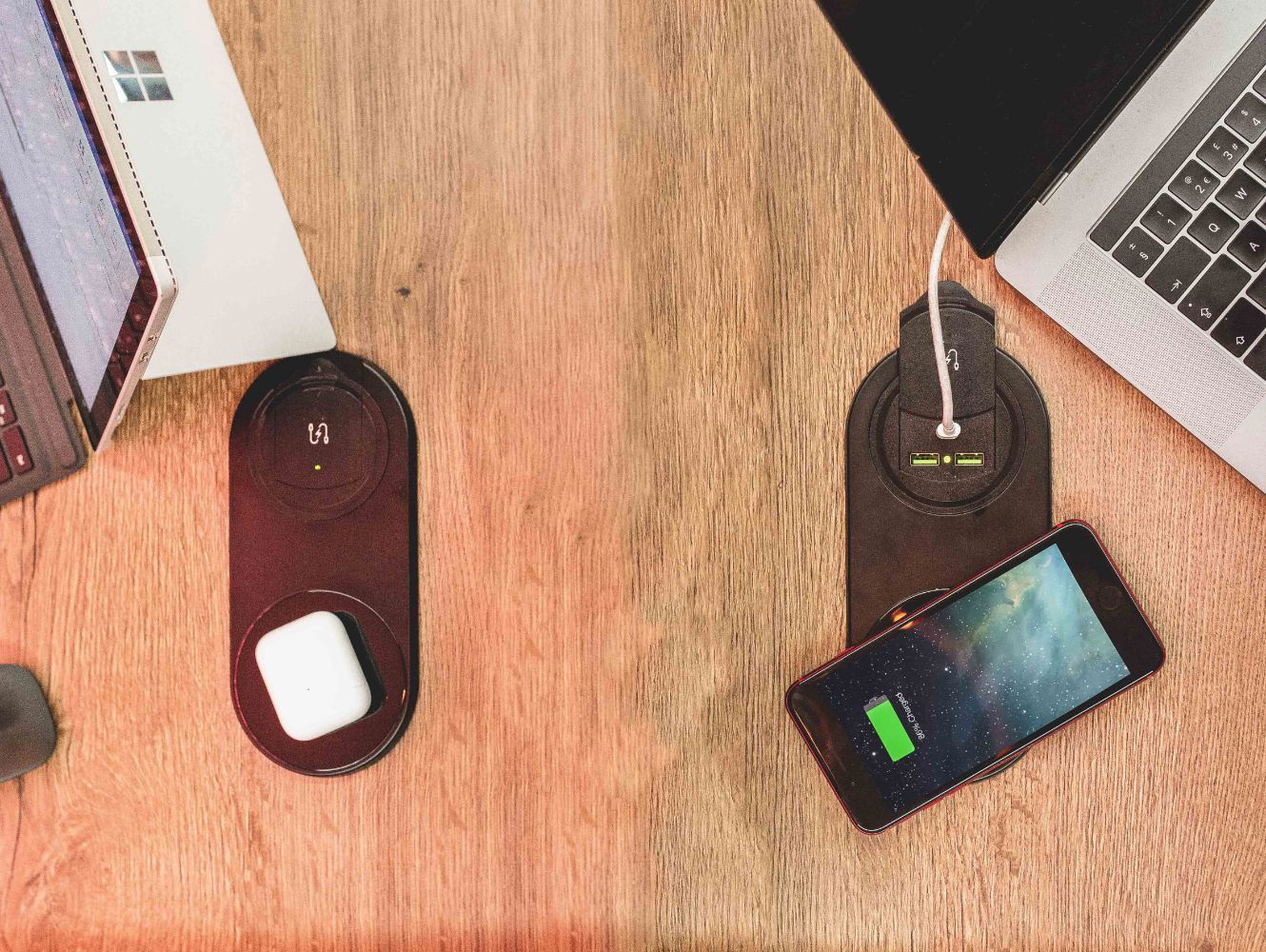

Dual Pro Charger

The innovative Aircharge Dual Pro Charger combines the benefits of Qi wireless and Type-C wired fast charging to power up to 4 devices simultaneously, including laptops.


FEATURES:

  • High-power desktop module specifically developed for the modern office environment
  • Integrated solution to deliver practical multi-device access to power
  • Up to 10W Qi-Certified Fast Wireless Charging

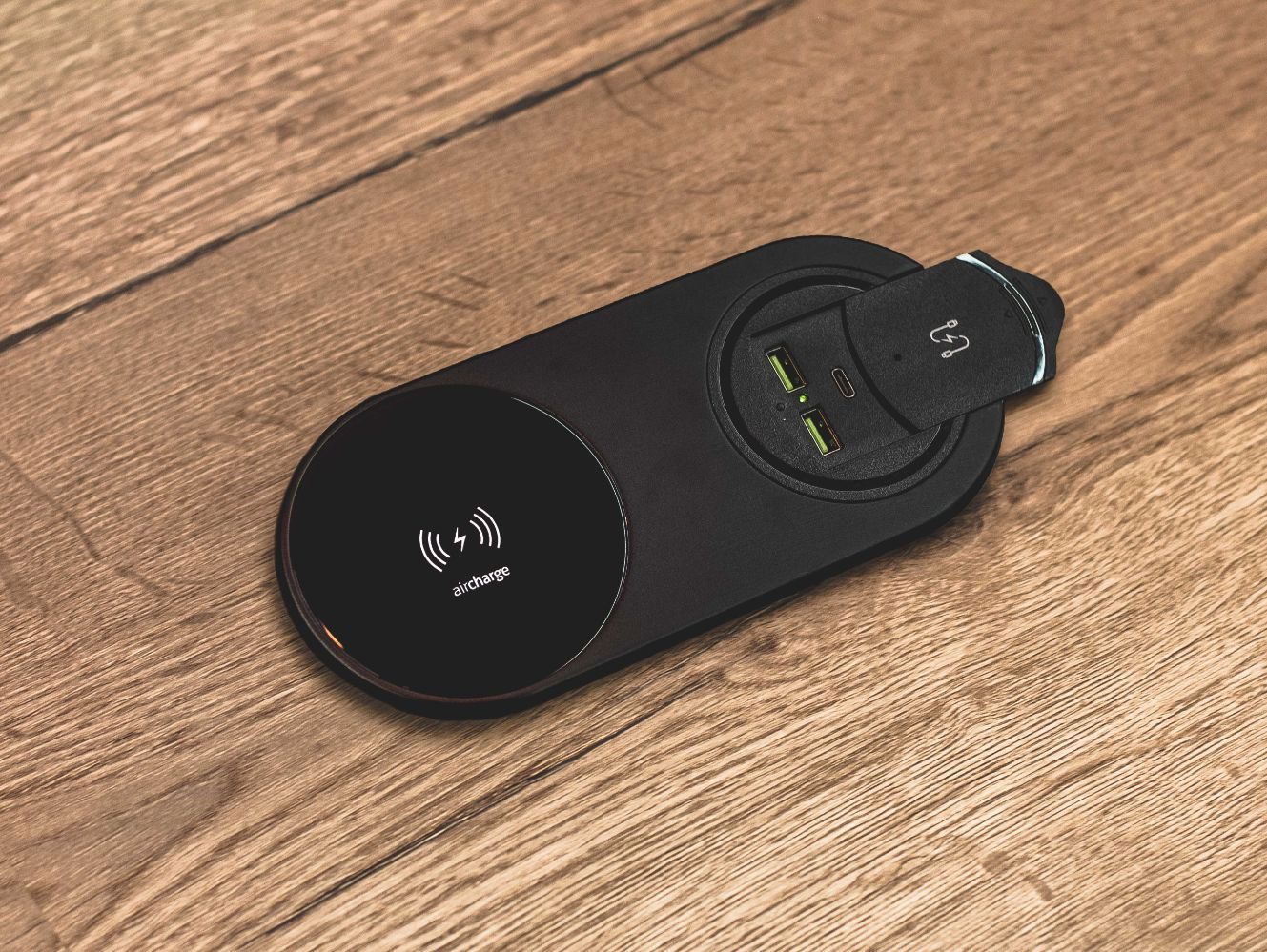

  • Lid cover slides to reveal the USB Type-C output and two additional USB Type-A outputs.
  • 65W laptop charging without a traditional brick power cord
  • Installed at surface level into a standard 80mm desk grommet and powered via a single power source

TECHNICAL SPECIFICATIONS:

  • Finish/Colour: Glass Black/White and Base Silver/Black
  • Input: 100-240V / 2A 50 / 60hZ
  • Aircharge Unit: 10W DC 5V / 2A 9V / 1.7A
  • C-Charge Unit: 96W DC 22.5-24V 4.3A Total
  • Power Cable: 1.3M USB and 1.3M Power Cable
  • Frequency: 110-205KHz
  • Certification: Qi-Certified


Aircharge

Power Source

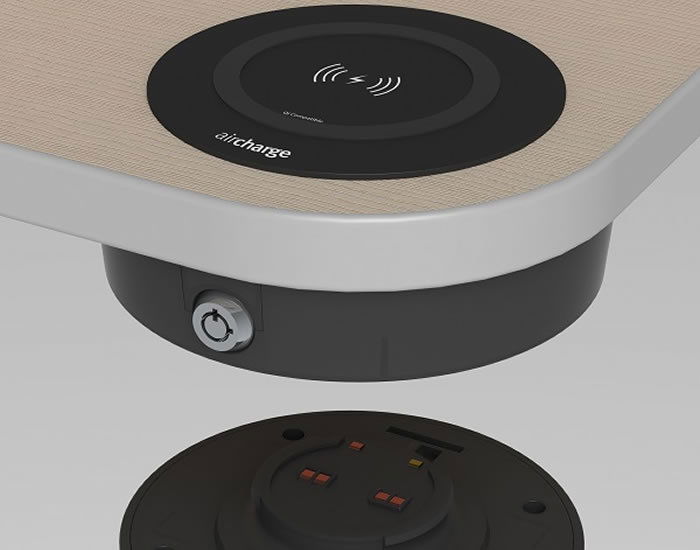

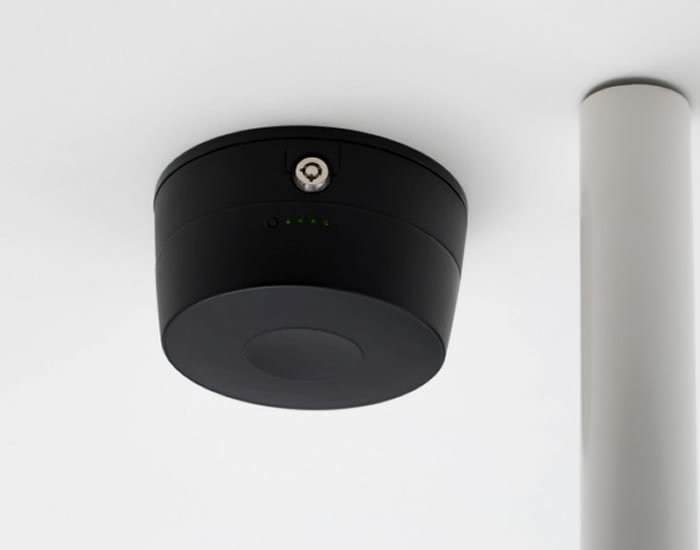

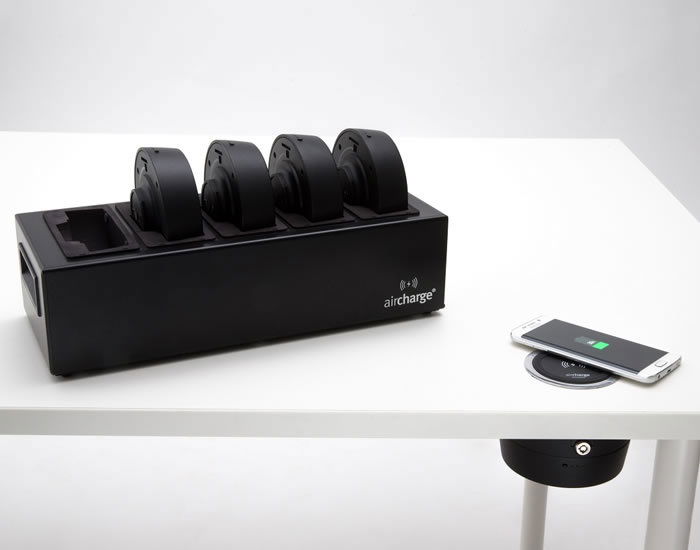

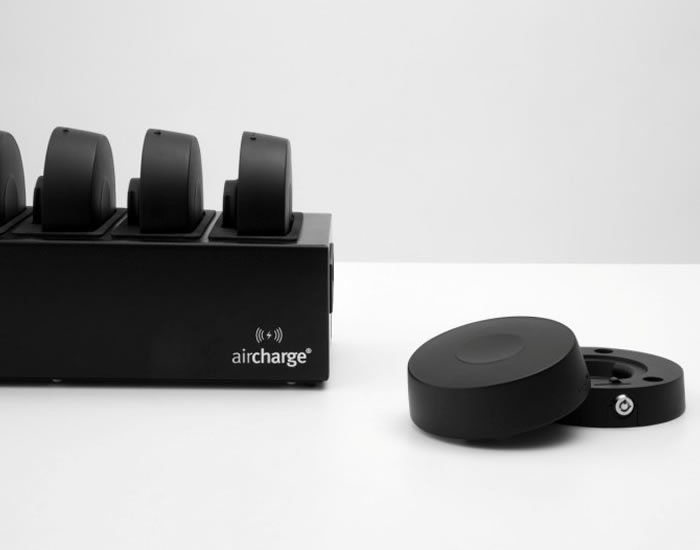

BATTERY PACK

First-to-market battery powered wireless charging technology to bring wireless charging to venues without direct access to power.


FEATURES:

  • Unique solution including an intelligent charging rack and 5 rechargeable 18,000 mAh capacity battery pucks.
  • Additional battery pucks can be purchased separately
  • Modular design - When combined with an Aircharge Wireless Surface Charger a full ready to use wireless charging solution is formed (Surface Charges suitable for use with Battery Powered Product are sold separately)
  • Safe and easy to install, lock and recharge
  • Interchangeable battery pucks for rapid swap out
  • Key-secured twist and lock mechanism for safe and easy deployment under the table or counter surface
  • Each battery puck guarantees 8 full charging cycles (Based on wirelessly charging Apple iPhone 6. A recharge cycle is defined as charging the battery from zero to 100%)
  • Create a new wireless charging experience - Perfect alternative to the mains power driven surface charger solution where direct access to power is not available.

IDEAL FOR:

  • Restaurants, bars and cafés with furniture which is not fixed or is moved regularly
  • Office break out areas
  • Malls and shops
  • Hotel, train station and airport lounges and waiting areas
  • Events and exhibitions

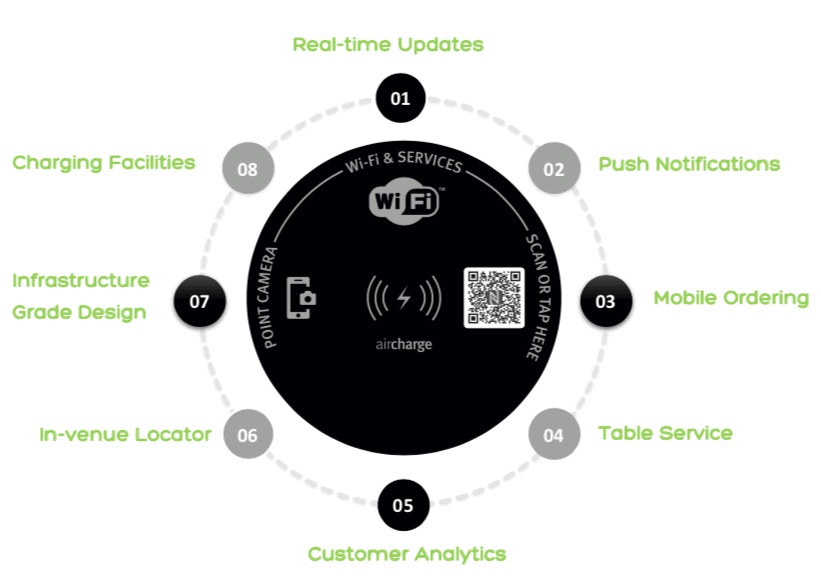

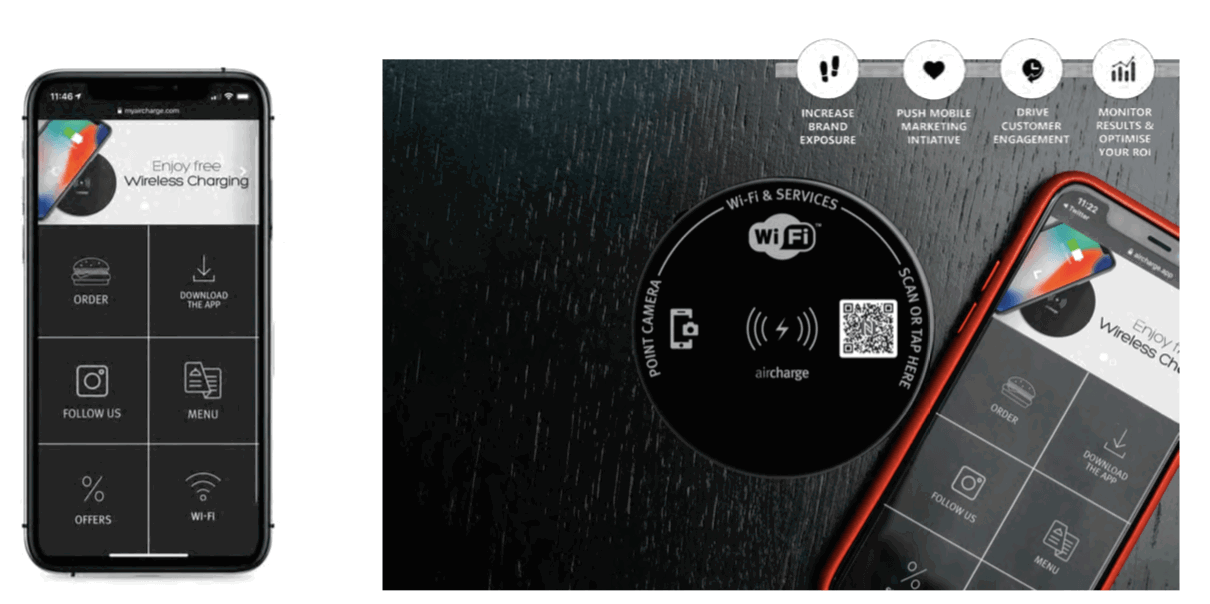

DIGITAL ENGAGEMENT PLATFORM


The Aircharge digital engagement platform will assist with achieving KPI’s such as app downloads and offer redemption. All data is quantitively measured and reported back to measure campaign ROI.

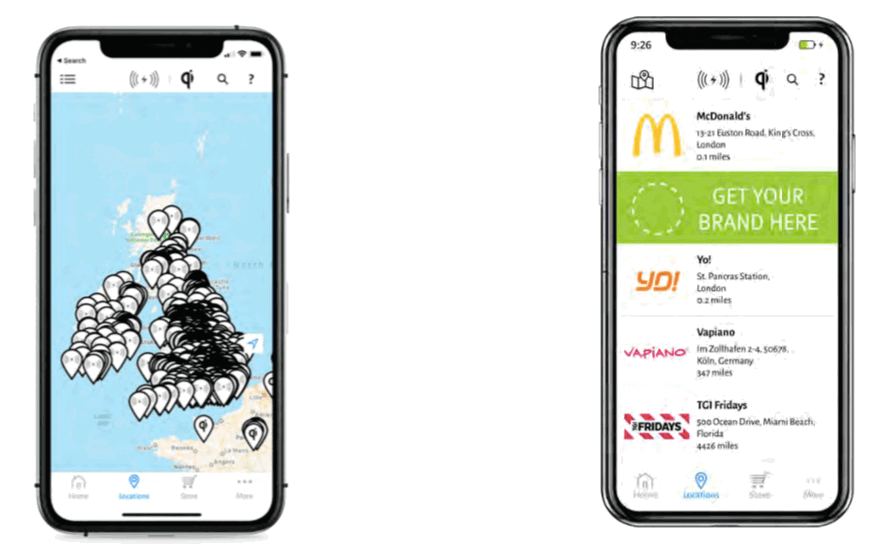

THE AIRCHARGE APP



The Aircharge locator app helps users find the nearest public charging location. Driving an average of 10 paying customers to each venue per day.


SERVICES



Aircharge smart connected wireless charging technology provides brands with a new and engaging way to deliver mobile marketing communication and promotions. As well as offering the user access to a host of services, ranging from table service to WiFi access.
